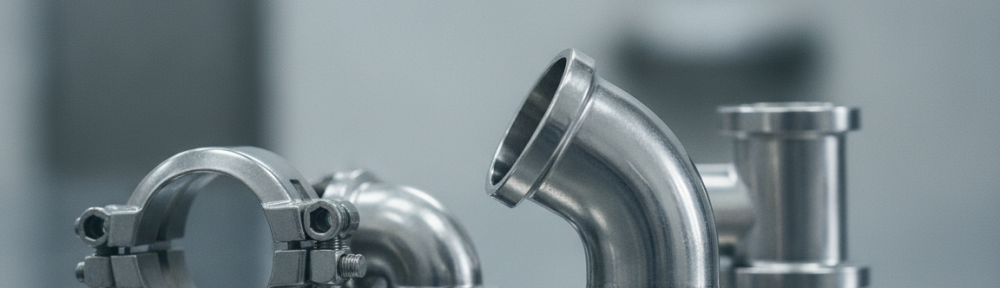

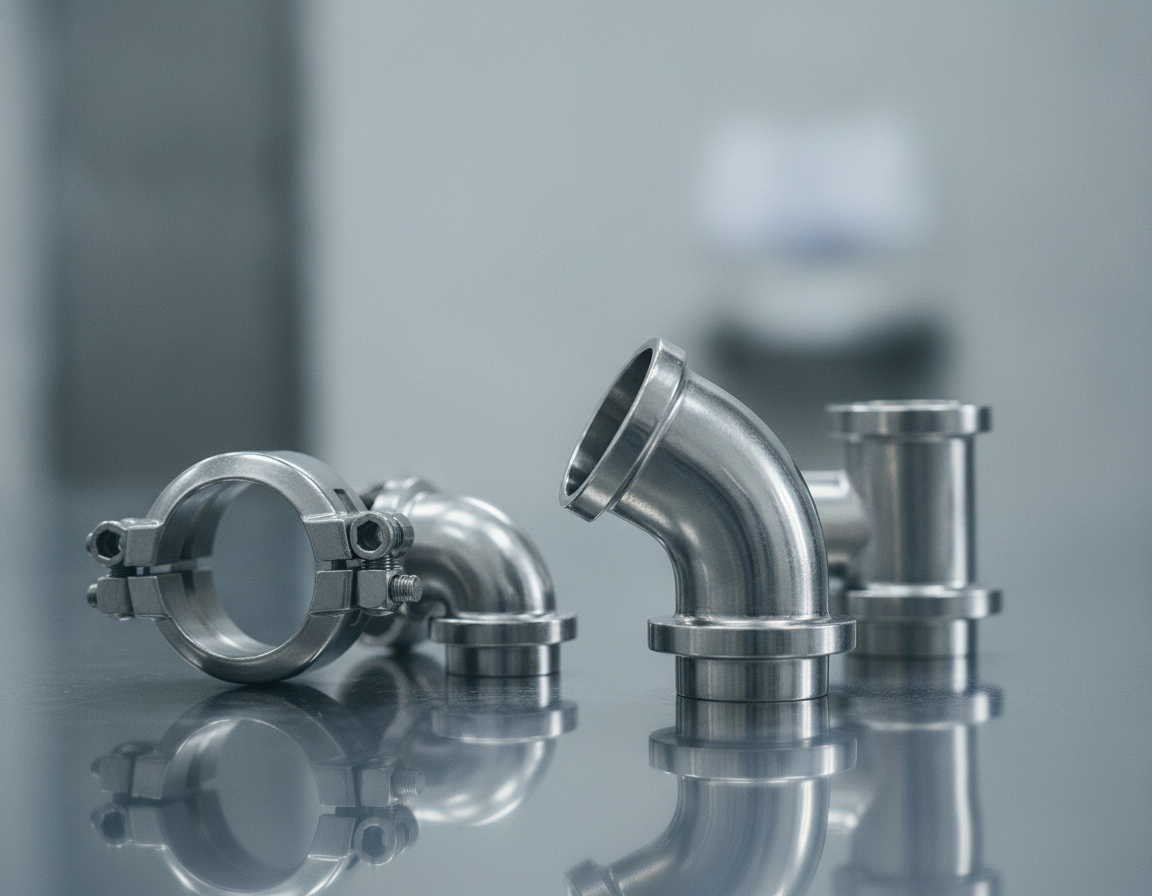

Stainless steel sanitary pipe fittings are essential in maintaining clean systems across various industries. These components, including ferrules, clamps, sanitary valves, and fittings, are engineered to keep fluid paths clean. They limit contamination risk while making cleaning, inspection, and maintenance easier.
CSI Sanitary Fittings
Selecting the right Hygienic Fittings and Ss Sanitary Fittings influences product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are important factors. They influence the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are important for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply supply essential information. They provide catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings enable contamination control in clean process systems.
- Cleanability and corrosion resistance are shaped by material grade and surface finish.
- Hygienic Fittings compatibility reduces downtime during maintenance and upgrades.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Understanding Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Clean-process systems rely on components made for hygiene, safety, and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features are essential for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are specified to create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design allows quick cleaning and minimizes cross-contamination risks.
Key Industries Using Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to preserve flavor and shelf life. Pharmaceutical plants specify fittings that meet strict regulatory requirements.
Biotech facilities require precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is widely chosen because it offers corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help minimize bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify the assembly and maintenance of robust hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. The right material, product type, and surface finish are important to reducing contamination risk and making cleaning easier. This section explains common stainless grades, component families, and surface finish options for hygienic performance.
Sanitary Stainless Steel Materials And Grades
Type 304 stainless steel is valued for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L delivers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L at the design stage simplifies the procurement of SS Sanitary Fittings and associated parts.
Common Product Types And Their Roles
Ferrules are the primary connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings connect flexible transfer lines and permanent piping. Sanitary Valves And Fittings direct flow while maintaining cleanable contours. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness affects how residues adhere. A 32RA internal finish is a common spec that matches cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment reduces microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes more dependable.
| Sanitary Component | Typical Material | Standard Finish | Main Use |
|---|---|---|---|
| Butt-weld and weld-in ferrules | 304 or 316L | 32RA ID/OD | Sanitary welded pipe ends |
| Two-piece Tri-Clamp clamps | 316L for demanding use | 32RA or electropolished | Quick-release sanitary connections |
| Weld fittings and couplings | 304 and 316L stainless options | 32RA, electropolished optional | Welded joins and directional changes |
| Sanitary flexible-line fittings | 316L often specified | Electropolished product-contact surfaces | Flexible connections, transfer lines |
| Sanitary valves and process fittings | 316L commonly used for product-contact areas | Polished internal surfaces | Cleanable flow control in process lines |
Triclover Fitting Options And Tri-Clamp Catalog Guidance
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. These standards help sanitary lines remain leak-resistant, cleanable, and easy to maintain. These standards streamline the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This ensures the correct part is chosen at the time of order.
For high-pressure applications, double-bolt or heavy-duty two-piece clamps are available. These clamps use a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This supports the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog enables quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that show detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section will explain common connection styles, brand interchangeability, and customer feedback on supplier reliability.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is essential when mixing components. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes spec sheets that confirm compatibility with major Tri-Clamp systems when standards are followed.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can lead to corrosion or trap product residues.
Customer feedback provides practical insights into supplier reliability. Reviews for CSI highlight consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets limit downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Connection Style | Recommended Application | Hygienic Cleanability | Interchangeability Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Frequent disassembly; product contact lines | Easy cleaning when gasket and ferrules match | High when size and sealing face match; CSI fittings fit most brands |
| Butt-weld and socket-weld fittings | Permanent process runs requiring smooth internal bores | Very high after proper polishing | Cross-brand fit depends on matching standards and dimensions |
| Threaded sanitary-style connection | Non-product-contact lines, utilities | Moderate; threads can trap residue | Use carefully and confirm grade, thread style, and finish |
| Flexible hose with sanitary ferrule | Flexible transfer lines and temporary connections | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
How To Select Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components starts with a focused review of size, material, finish, and pressure. This guide helps match size, material, finish, and gasket type to process requirements. Use the metrics and checks below to reduce downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a critical part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical or chloride-exposed processes, choose 316L for superior corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks reduce costs. Compare catalog part numbers against DN TC inch equivalents, confirm material grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, and clamp pressure to streamline spare parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Ensuring the cleanliness and reliability of sanitary connections is vital. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Proper assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Guidance for Sanitary Weld Fittings
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Implement CIP and SIP cycles as required by the process. Inspect ferrule faces, clamps, and gaskets after thermal cycles, production runs, and scheduled cleaning. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting common issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
How to address surface damage
Surface damage such as scratches, pitting, or crevice corrosion can harbor microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Replace components if pitting penetrates the surface or if repair polishing would remove too much material.
Documentation and records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support regulatory compliance and expedite troubleshooting efforts.
| Service Task | Interval | Main Step | Important Notes |
|---|---|---|---|
| Clamp torque check | After assembly and monthly | Check with calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket condition check | At scheduled intervals or whenever defects appear | Look for damage, compression set, or extrusion | Replace with matching material and durometer |
| Surface finish check | Every quarter or after welding | Measure Ra, inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld profile inspection | After installation, then yearly | Inspect weld shape, smoothness, and defects | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP/SIP validation | Each process cycle | Record process parameters during each cycle | Document results for validation and regulatory review |
Buying Sanitary Fittings From Catalogs, CSI, And Installation Parts Supply
A detailed catalog review is a useful first step. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. Prices reflect typical catalog entries and help set realistic budgets for procurement.
| Product | Size | Grade | Surface Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Two-piece single-pin clamp | Quarter-inch to three-quarter-inch | 304 | Standard | 3.91 USD |
| Two-piece single-pin clamp | 1″ | 304 stainless | Standard finish | $4.91 |
| Single-pin two-piece clamp | 2 inch | 304 stainless | Standard finish | 5.99 USD |
| Two-piece single-pin clamp | 2.5 inch | Type 304 stainless steel | Standard finish | 6.93 USD |
| Two-piece single-pin clamp | Three-inch size | 304 | Standard catalog finish | 7.54 USD |
| Single-pin two-piece clamp | 4 inch | Type 304 stainless steel | Standard | 9.16 USD |
| Ferrule TC | 2 inch with 1.125 inch OAL | 316L | 32RA ID/OD | Approx. $4.24 |
| TC sanitary ferrule | 2″ — 1.125″ OAL | 304 stainless | 32RA internal and external finish | $4.06 |
| Ferrule TC | 3″ | Type 316L stainless steel | 32RA ID and OD | Approx. $6.15 |
| Double-bolt high-pressure clamp | 1.5 inch | 316 stainless | Polished finish | $12.93 |
| High-pressure double-bolt clamp | 2 inch | 316 | Polished finish | $14.62 |
| Double-bolt high-pressure clamp | Three-inch size | Type 316 stainless steel | Polished | Approx. $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to confirm availability, surface finishes, material grades, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, prioritize catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted search through a Sanitary Fittings Catalog will streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, supports cleanability. This minimizes contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is important for tight Sanitary Connections and easy interchangeability.
When selecting fittings, review the material, finish, and connection type. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning extend the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. That helps protect product quality in hygienic processing environments.
